WSP-10
FILLEX
Product Description
1.Suitable for beer, beverage, fruit juice, bottled water, dairy products, condiments and other shrink film packaging.
2. Unique film unwinding device and film constant tension transmission, film instantaneous cut off, automatic lap wrap method, shrink the higher strength after packaging.
3.Unique "Viagra" sub-bottle way, not the card bottle, do not squeeze bottle, smooth delivery.
4.Servo motor control system, the lever into the bottle, film, film, film precision synchronization, stable and reliable.
5.Exclusive development of the "ultra-thin film delivery system" , the use of PE film thinner, the film faster and more stable.
Suitable to PE PVC film packaging.
PLC control system,automatic working.
Colorful touch-screen control panel,easy operate.

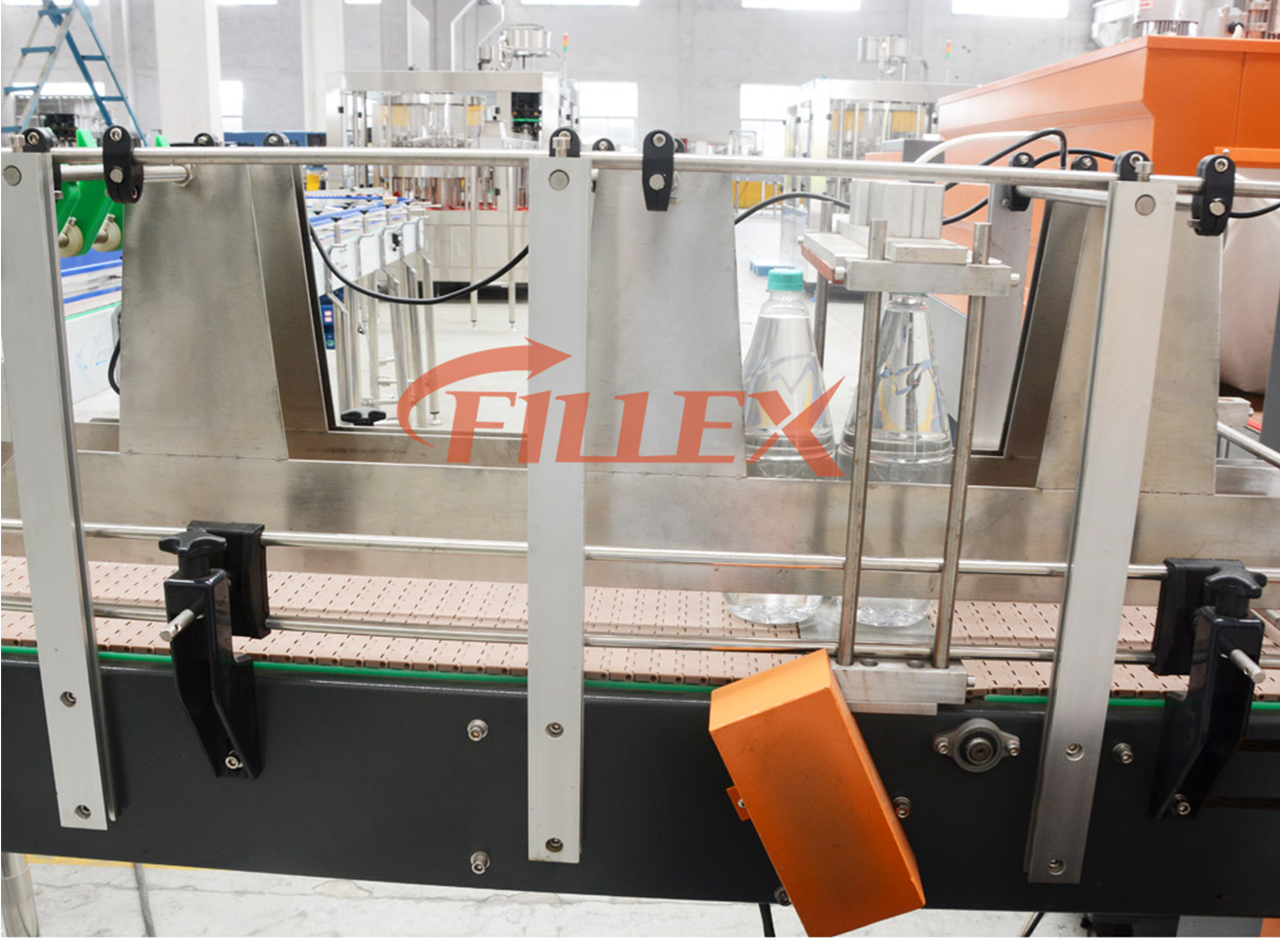

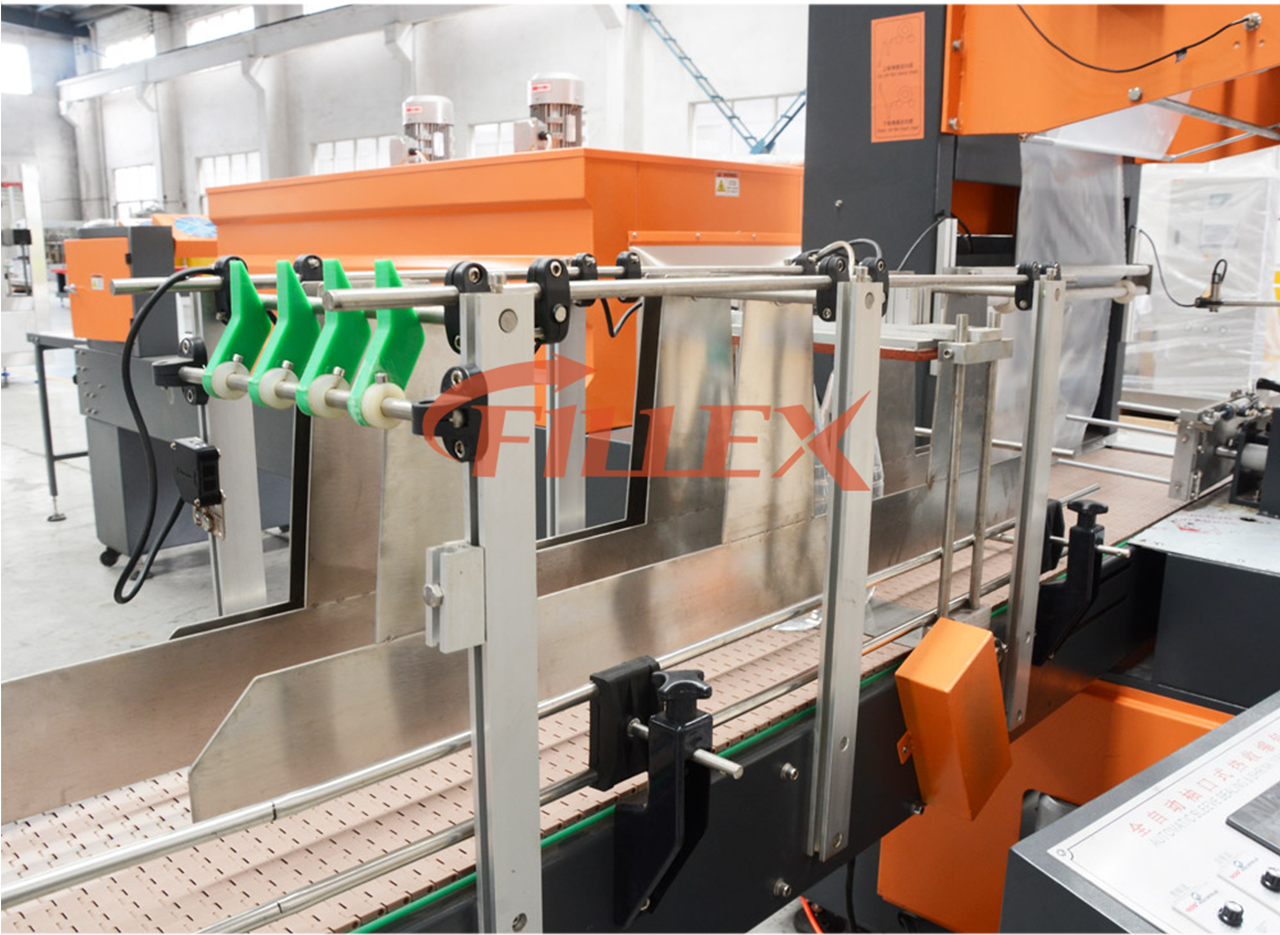

Bottle entering,auto unscarmbling bottle,pushing bottle,heat sealing-saw cutting,pressing PE,shrink,Cooling automatically.
The height of the conveyor shall be made towards client's demand,can handle 2*3/3*4/4*5/4*6 bottle per package.
Double air blowers,guarantees the temperature balance, in the shrink stove with PAD temperature controller that apparently saves energy.
The height of the conveyors shall be made towards client's demand.
Technical Parameter
Model | WSP-10(L-Type) | WSP-15(L-Type) | WSP-20(L-Type) | WSP-30(L-Type) |
Machine dimension(mm) | 6500*3200*2100 | 8500*3200*2100 | 13200*1100*2100 | 13840*1100*2100 |
Shrink tunnel dimension(mm) | 1800*650*450 | 1800*650*450 | 1800*650*450 | 2500*700*450 |
Max.package dimension(mm) | 600*400*350 | 600*400*350 | 600*400*350 | 600*400*350 |
Packing speed (bundles/min) | 8-10 (pcs/min) | 14-15 (pcs/min) | 16-20 (pcs/min) | 20-30 (pcs/min) |
Work voltage/power | 380V 19kw | 380V 19kw | 380V 30kw | 380V 30kw |
Working pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
Total weight | 1600kg | 2000kg | 2500kg | 2800kg |
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We have our own factory for many years,can give u best service.
Q2: What's your guarantee if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.
Q5: What's the delivery time?
A5: 30-45 days after the T/T deposit or L/C.
Q6: Do you provide customized service?
A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.
Product Description
1.Suitable for beer, beverage, fruit juice, bottled water, dairy products, condiments and other shrink film packaging.
2. Unique film unwinding device and film constant tension transmission, film instantaneous cut off, automatic lap wrap method, shrink the higher strength after packaging.
3.Unique "Viagra" sub-bottle way, not the card bottle, do not squeeze bottle, smooth delivery.
4.Servo motor control system, the lever into the bottle, film, film, film precision synchronization, stable and reliable.
5.Exclusive development of the "ultra-thin film delivery system" , the use of PE film thinner, the film faster and more stable.
Suitable to PE PVC film packaging.
PLC control system,automatic working.
Colorful touch-screen control panel,easy operate.
Bottle entering,auto unscarmbling bottle,pushing bottle,heat sealing-saw cutting,pressing PE,shrink,Cooling automatically.
The height of the conveyor shall be made towards client's demand,can handle 2*3/3*4/4*5/4*6 bottle per package.
Double air blowers,guarantees the temperature balance, in the shrink stove with PAD temperature controller that apparently saves energy.
The height of the conveyors shall be made towards client's demand.
Technical Parameter
Model | WSP-10(L-Type) | WSP-15(L-Type) | WSP-20(L-Type) | WSP-30(L-Type) |
Machine dimension(mm) | 6500*3200*2100 | 8500*3200*2100 | 13200*1100*2100 | 13840*1100*2100 |
Shrink tunnel dimension(mm) | 1800*650*450 | 1800*650*450 | 1800*650*450 | 2500*700*450 |
Max.package dimension(mm) | 600*400*350 | 600*400*350 | 600*400*350 | 600*400*350 |
Packing speed (bundles/min) | 8-10 (pcs/min) | 14-15 (pcs/min) | 16-20 (pcs/min) | 20-30 (pcs/min) |
Work voltage/power | 380V 19kw | 380V 19kw | 380V 30kw | 380V 30kw |
Working pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
Total weight | 1600kg | 2000kg | 2500kg | 2800kg |
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We have our own factory for many years,can give u best service.
Q2: What's your guarantee if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.
Q5: What's the delivery time?
A5: 30-45 days after the T/T deposit or L/C.
Q6: Do you provide customized service?
A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.
