Applicable to pure water, mineral water, beverage products, water and process water of various types of water treatment equipment.
Availability: | |
---|---|
Quantity: | |

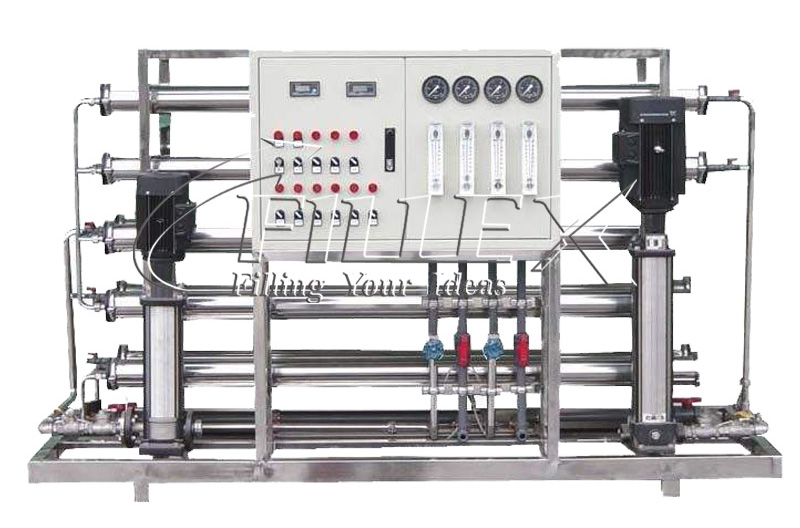

Reverse Osmosis Water Treatment Purify Machine
Applicable to pure water, mineral water, beverage products, water and process water of various types of water treatment equipment.

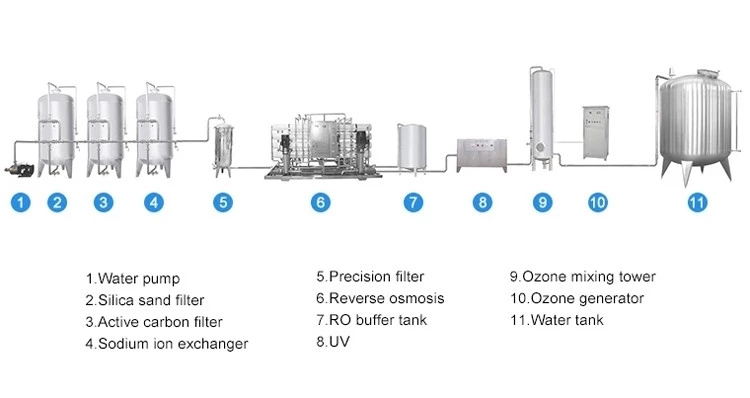

Mainly including:
1.Pretreatment system (multi-media filter, activated carbon filter, ion exchanger , microporous filter
2.Membrane separation system (ultrafiltration , nanofiltration , reverse osmosis unit)
3.Electrodialysis equipment
4.Sterilization equipment (Ultraviolet equipment, ozone equipment) and so on
Technical Parameter
Model | Flow rate | Power(KW) | Water use efficiency | RO memberane | Dimension L*W*H(mm) |
RO-0.5T | 500LPH | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
RO-1T | 1000LPH | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
RO-2T | 2000LPH | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
RO-3T | 3000LPH | 4 | ≥ 50% | 4040 | 2440X650X1750 |
RO-5T | 5000LPH | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
RO-6T | 6000LPH | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-8T | 8000LPH | 13.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 4000X900X1800 |
RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
Model | Flow rate | Power(KW) | Water use efficiency | RO memberane | Dimension L*W*H(mm) |
RO-0.5T | 500LPH | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
RO-1T | 1000LPH | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
RO-2T | 2000LPH | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
RO-3T | 3000LPH | 4 | ≥ 50% | 4040 | 2440X650X1750 |
RO-5T | 5000LPH | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
RO-6T | 6000LPH | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-8T | 8000LPH | 13.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 4000X900X1800 |
RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
Workshop
Reverse Osmosis Water Treatment Purify Machine
Applicable to pure water, mineral water, beverage products, water and process water of various types of water treatment equipment.
Mainly including:
1.Pretreatment system (multi-media filter, activated carbon filter, ion exchanger , microporous filter
2.Membrane separation system (ultrafiltration , nanofiltration , reverse osmosis unit)
3.Electrodialysis equipment
4.Sterilization equipment (Ultraviolet equipment, ozone equipment) and so on
Technical Parameter
Model | Flow rate | Power(KW) | Water use efficiency | RO memberane | Dimension L*W*H(mm) |
RO-0.5T | 500LPH | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
RO-1T | 1000LPH | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
RO-2T | 2000LPH | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
RO-3T | 3000LPH | 4 | ≥ 50% | 4040 | 2440X650X1750 |
RO-5T | 5000LPH | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
RO-6T | 6000LPH | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-8T | 8000LPH | 13.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 4000X900X1800 |
RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
Model | Flow rate | Power(KW) | Water use efficiency | RO memberane | Dimension L*W*H(mm) |
RO-0.5T | 500LPH | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
RO-1T | 1000LPH | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
RO-2T | 2000LPH | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
RO-3T | 3000LPH | 4 | ≥ 50% | 4040 | 2440X650X1750 |
RO-5T | 5000LPH | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
RO-6T | 6000LPH | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-8T | 8000LPH | 13.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 4000X900X1800 |
RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
Workshop
